AquaLock™ Large Diameter Fittings

AquaLock™ Fittings can be connected to:
Copper, CPVC, PEX, LDPE, MDPE, HDPE and Polypropylene tubing

POLYPROPYLENE TUBING SIZE
OUTSIDE DIAMETER [OD]

3/8” O.D
1/2” O.D
5/8″ O.D
7/8″ O.D
11/8″ O.D

COPPER TUBE SIZE
INSIDE DIAMETER [ID]

1/4” CTS NOT AVAILABLE
3/8” CTS
1/2” CTS
3/4” CTS
1” CTS

CTS = Copper tube size
NPT = National pipe tapered thread standard [MIP or FIP]
NPS = National pipe straight thread standard [IPS]
MGHT = Male garden hose thread
FGHT = Female garden hose thread
CLOSET = Toilet or ball cock connection
HB = Hose barbed

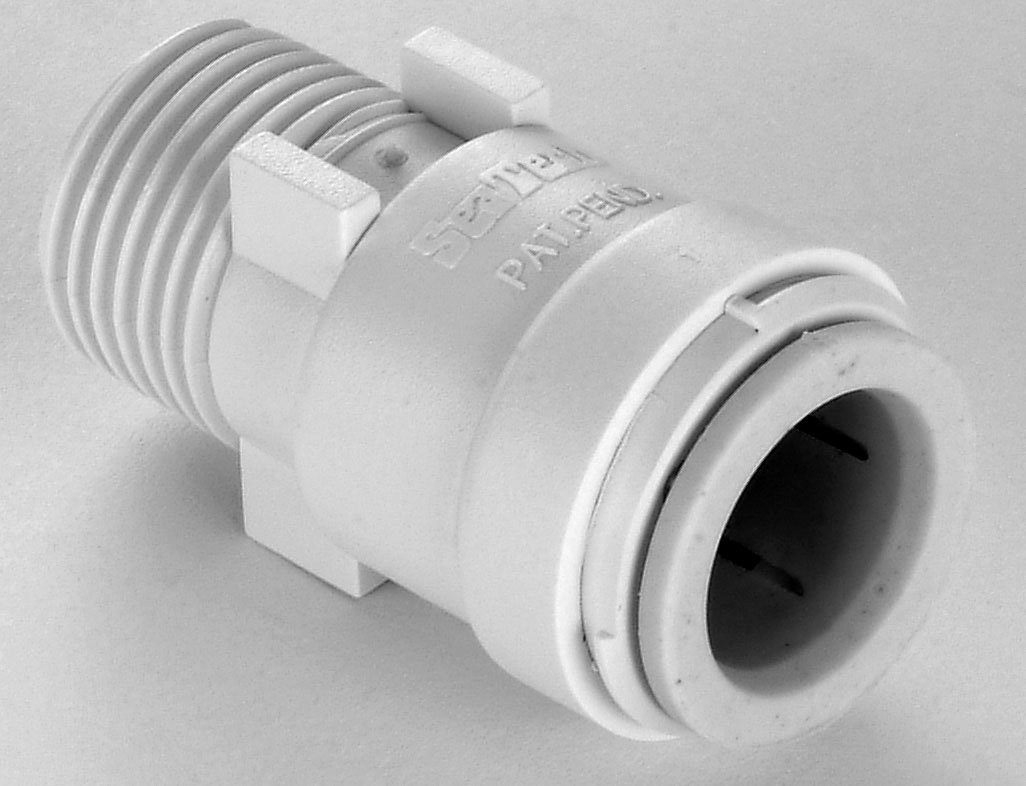

 (3501-1008)

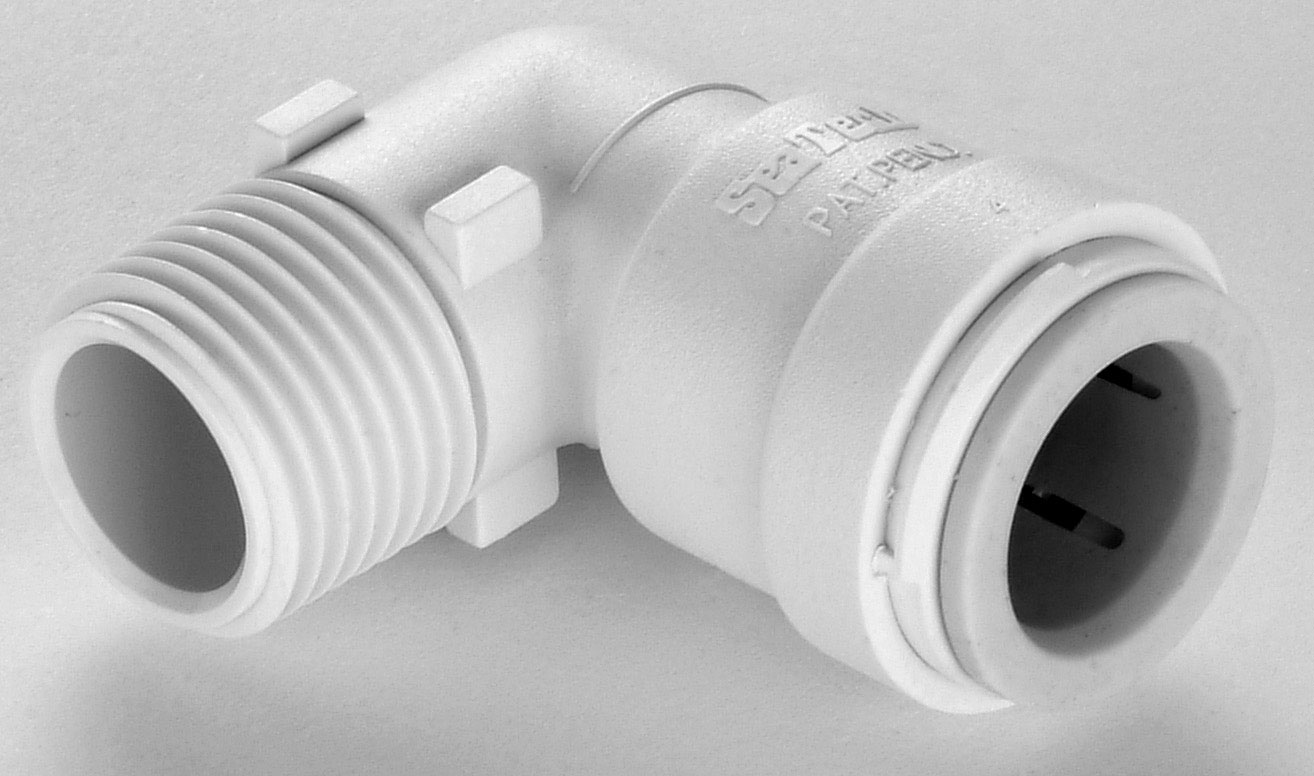

 (3519-1008)

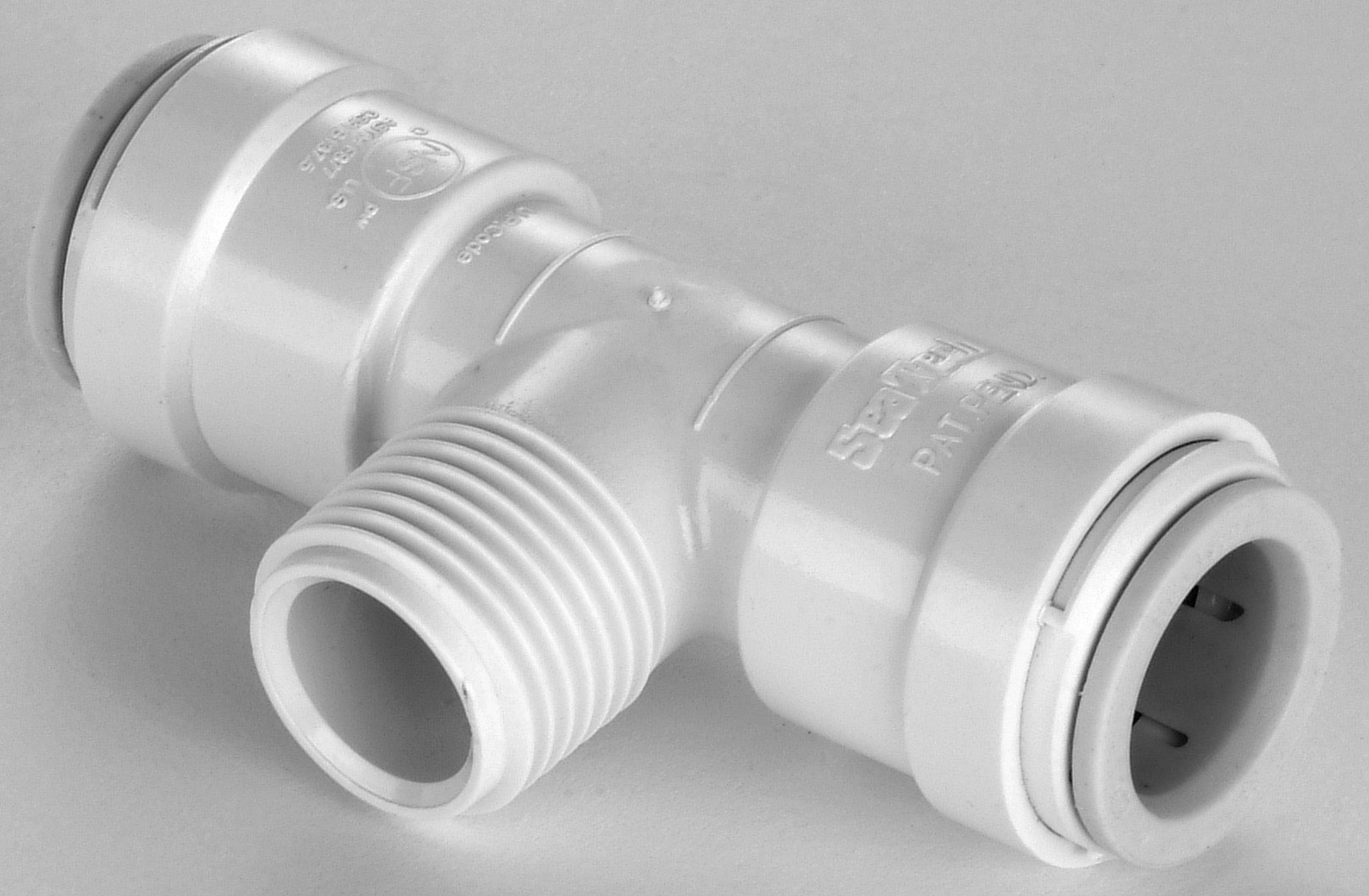

 (3530-1008)

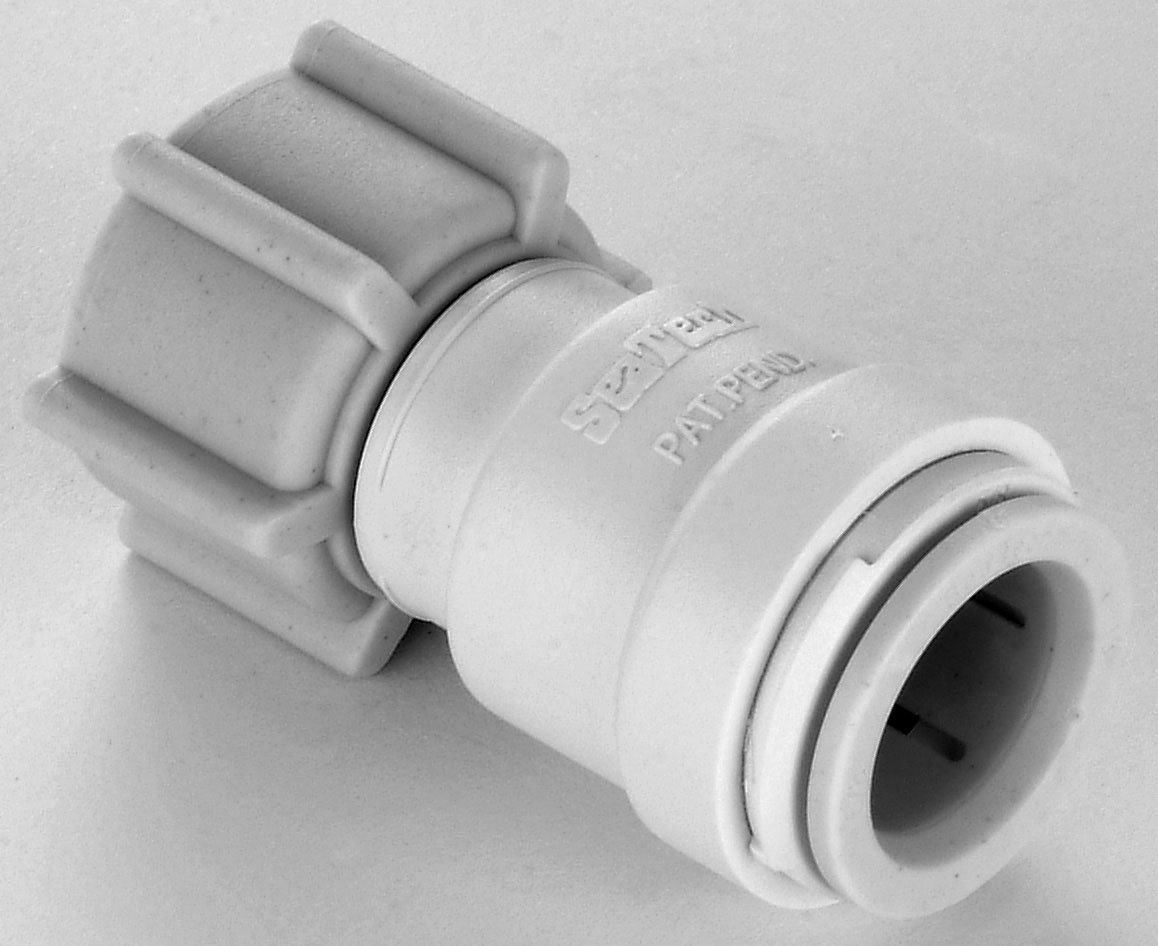

 (3510-1008)

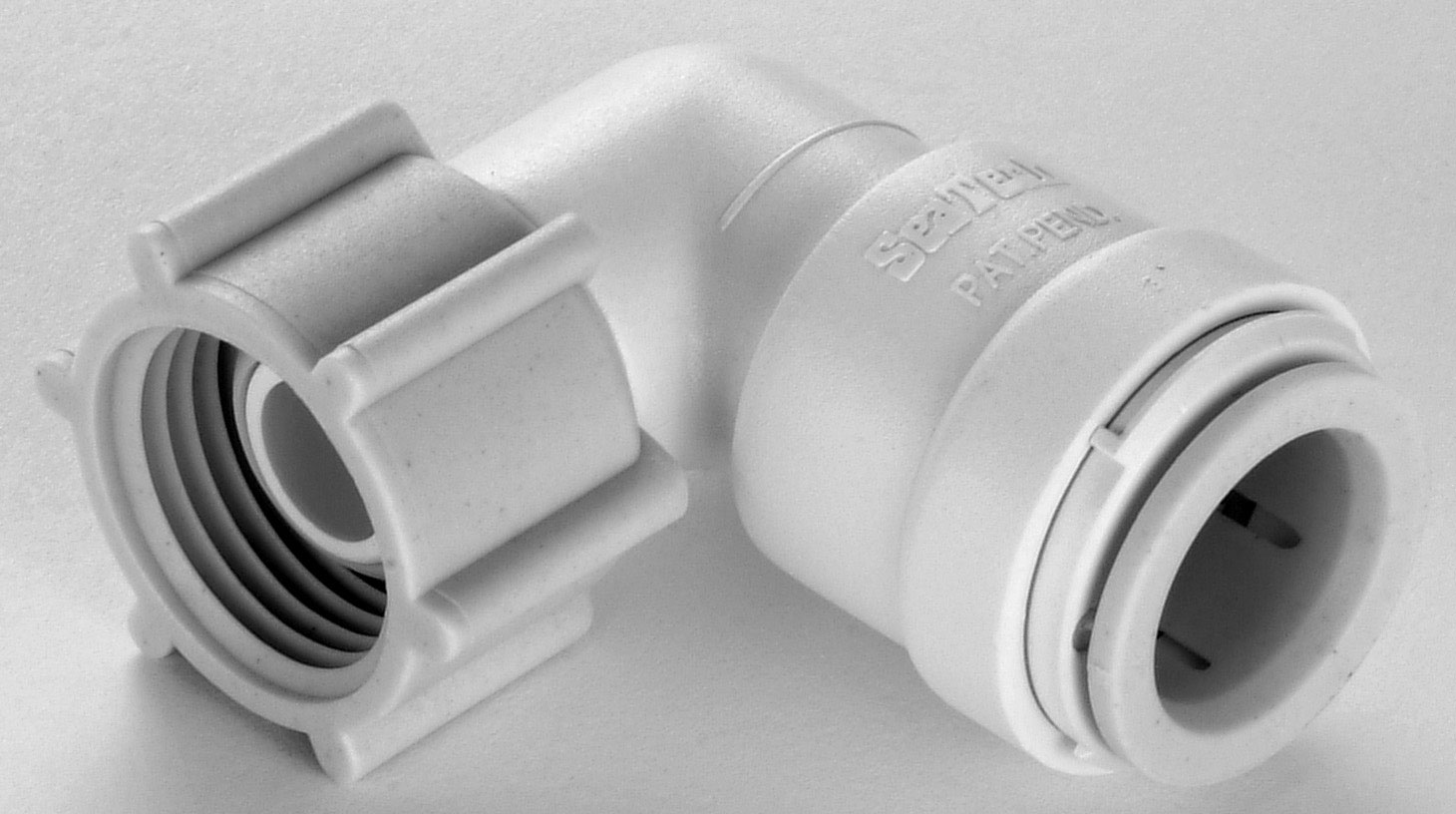

 (3520-1008)

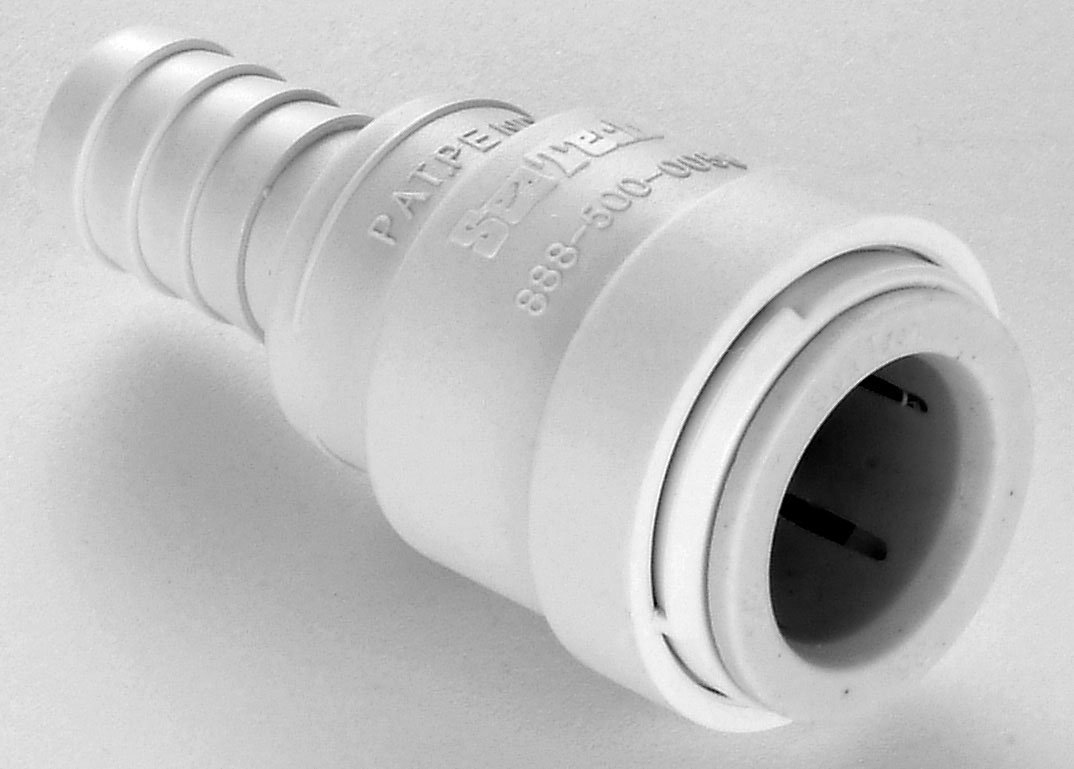

 (3513-1008)

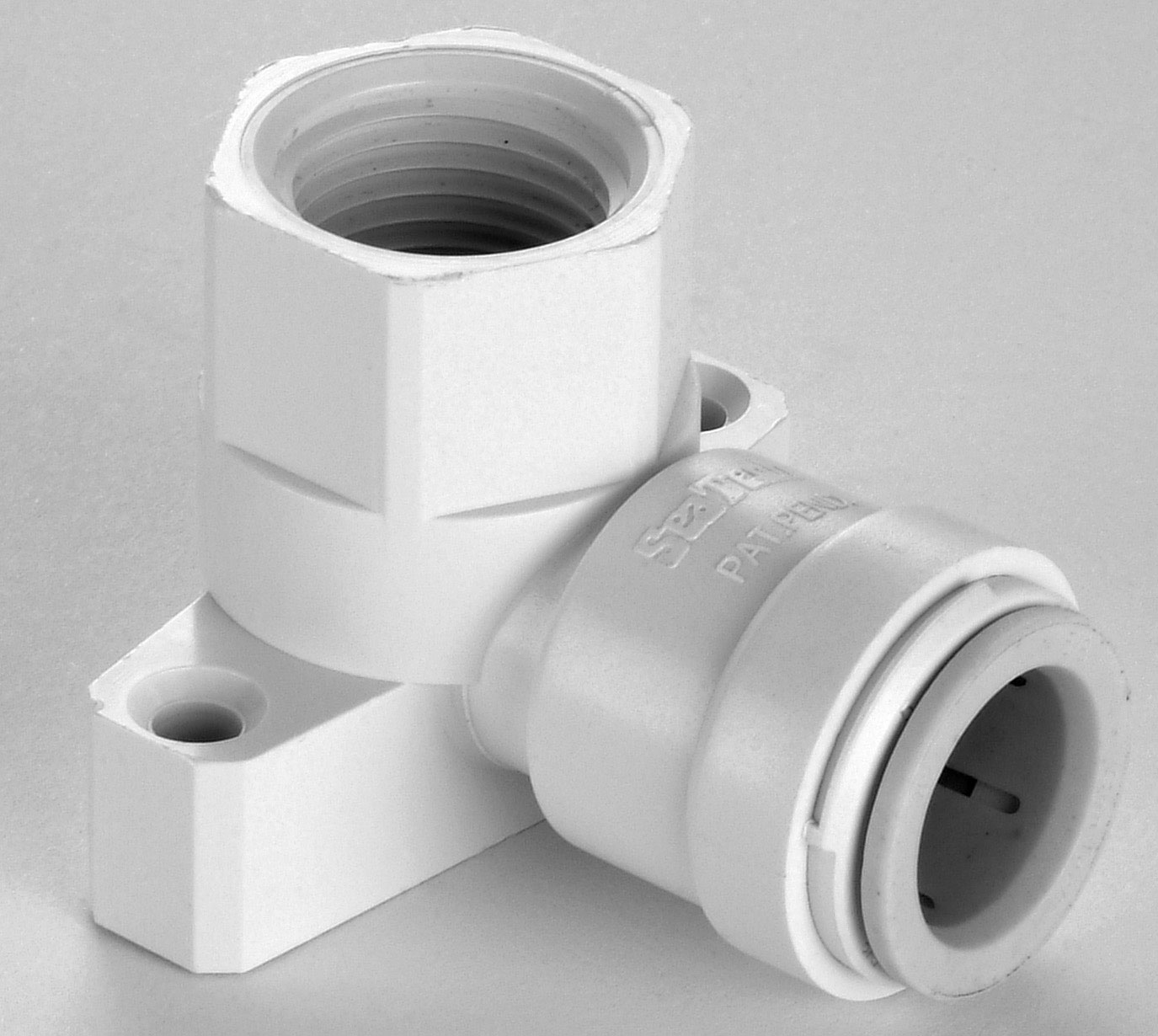

 (3521-1008)

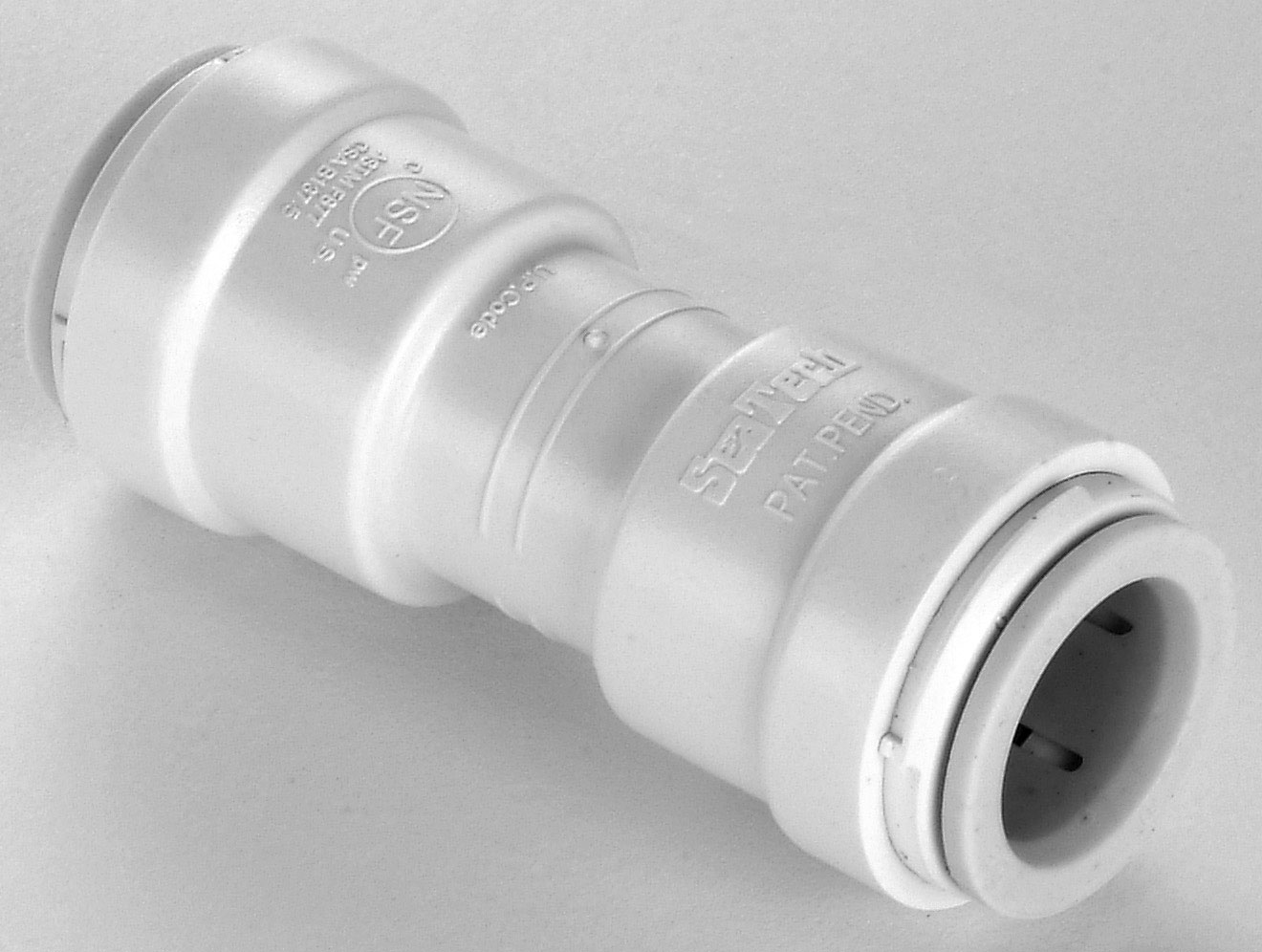

(3515-10

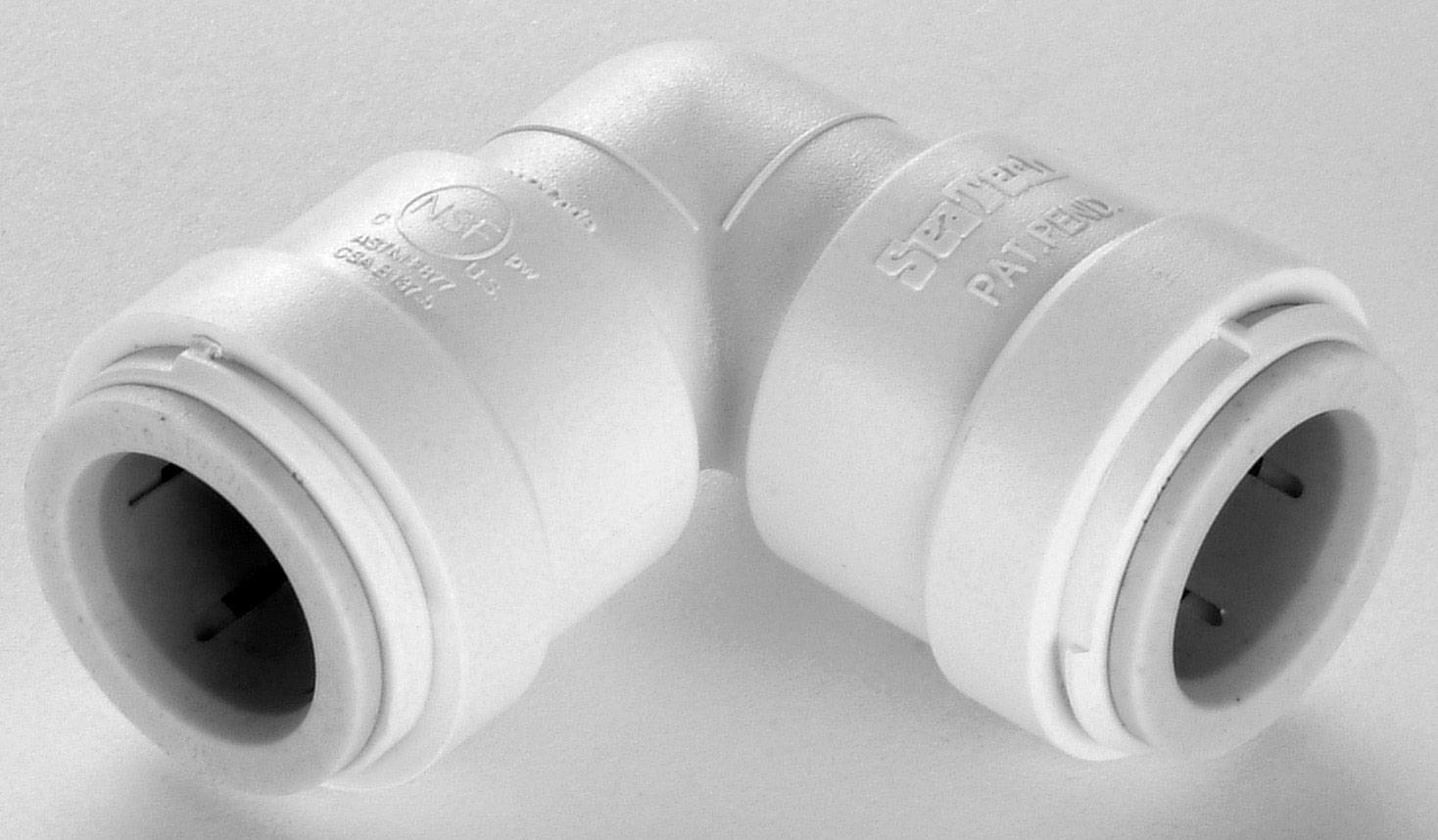

 (3517-10)

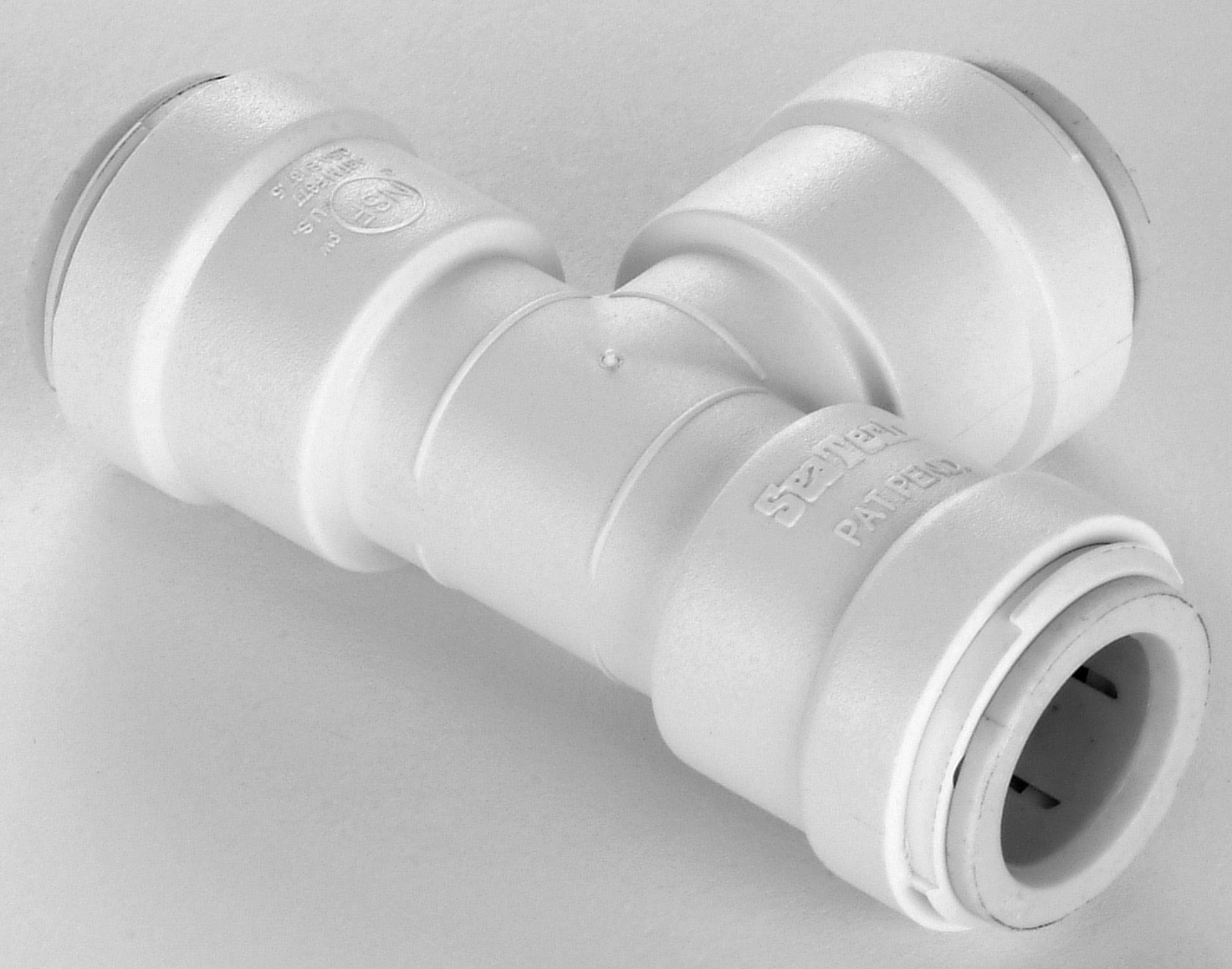

 (3523-10)

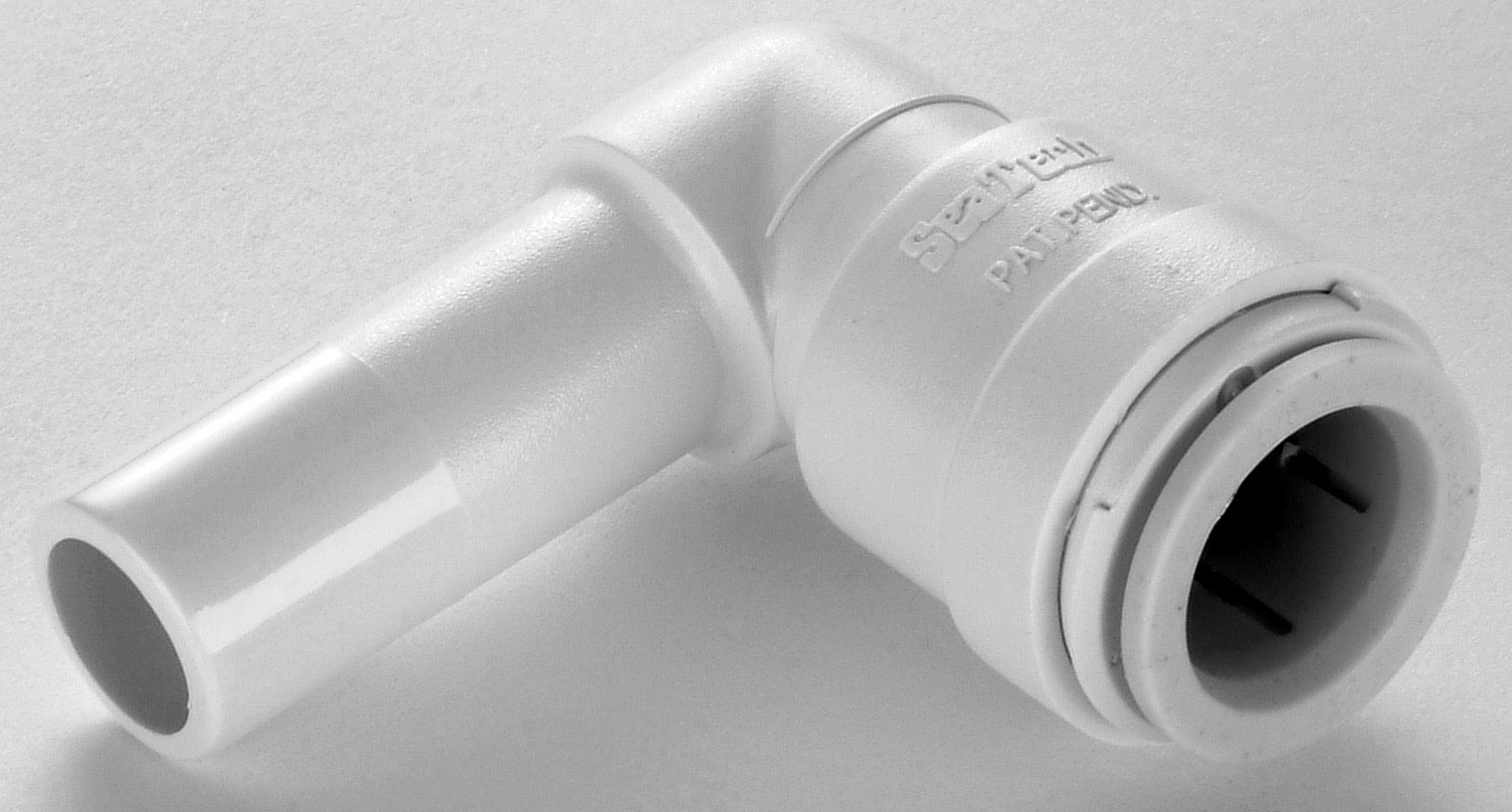

 (3518-10)

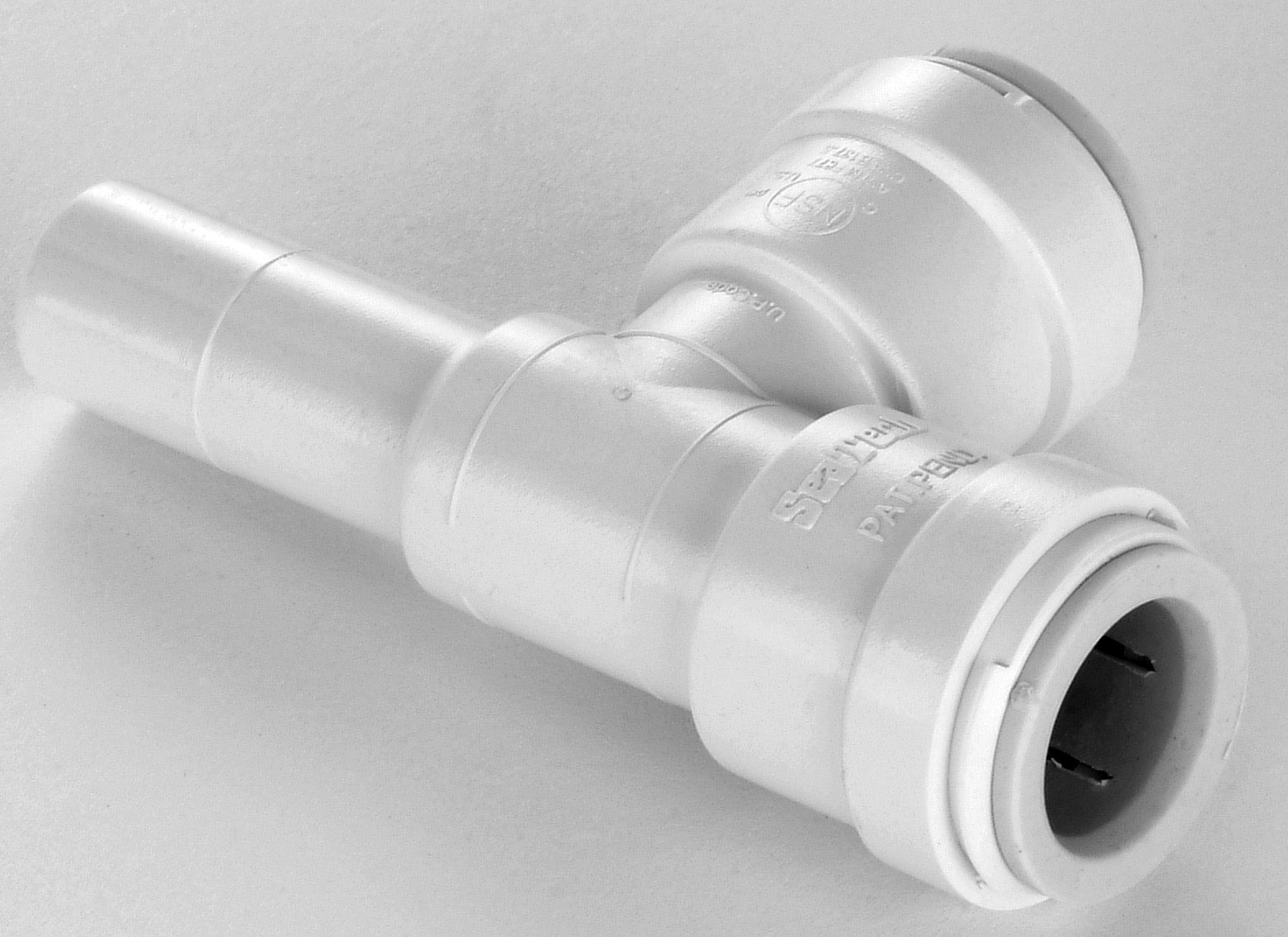

 (3533-10)
 (3534-10)

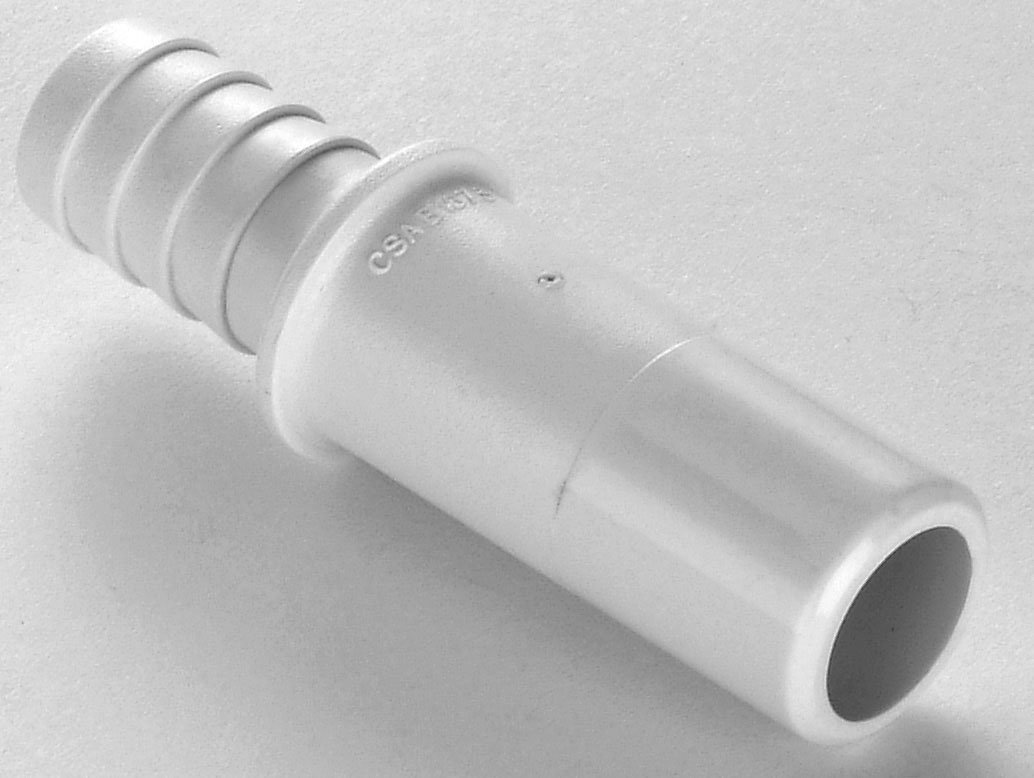

 (3511-1008)

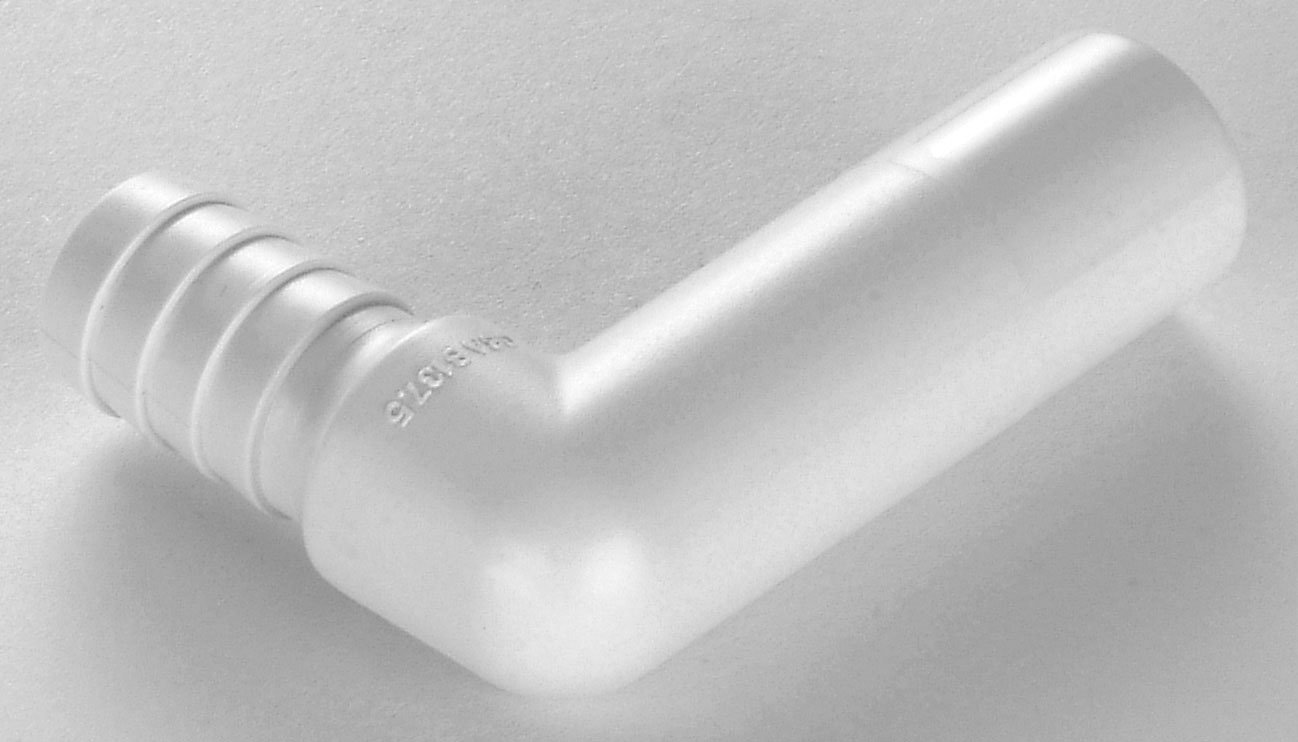

 (3512-1008)

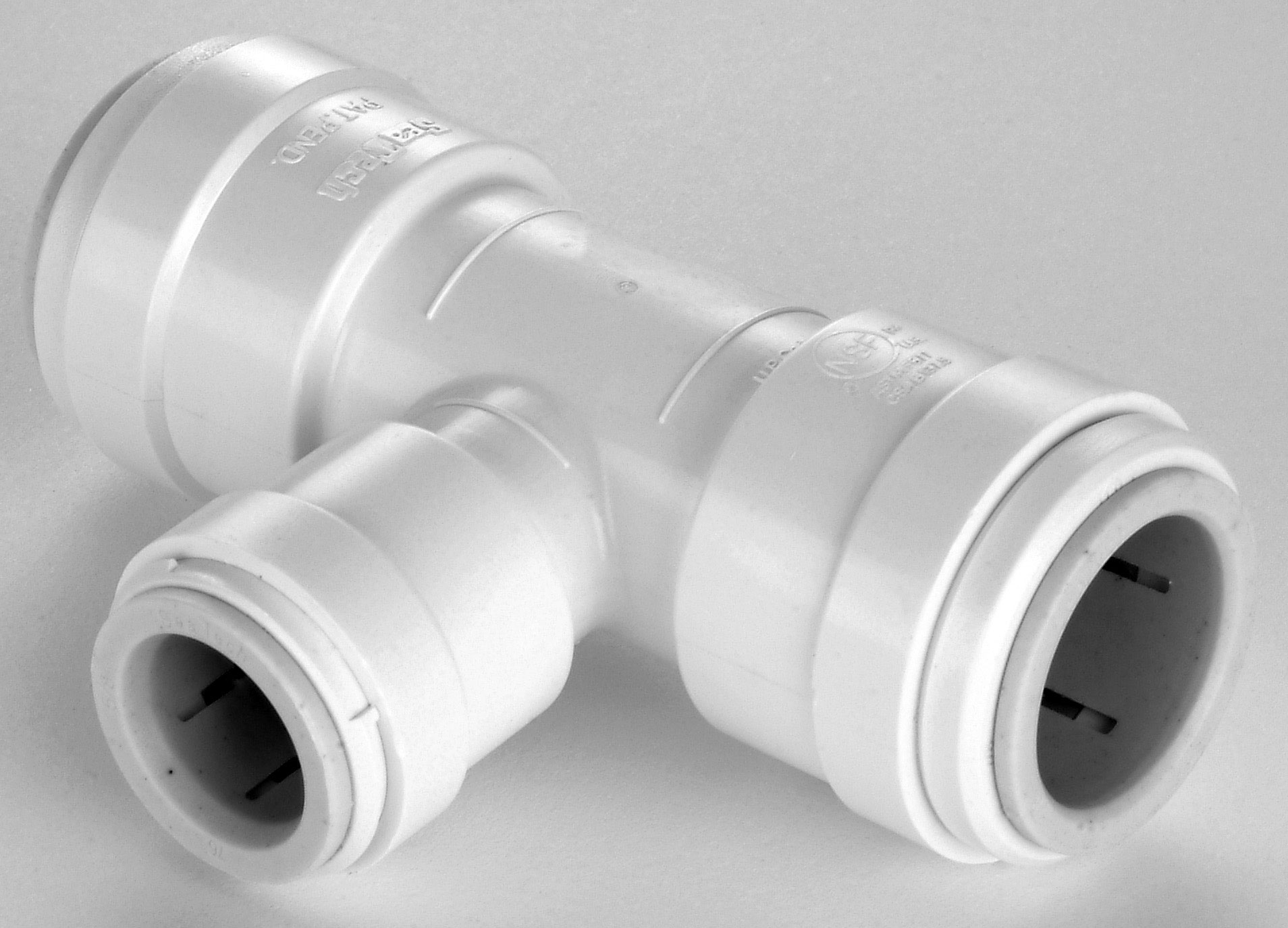

 (3524-1410)
 (3515R-1008)

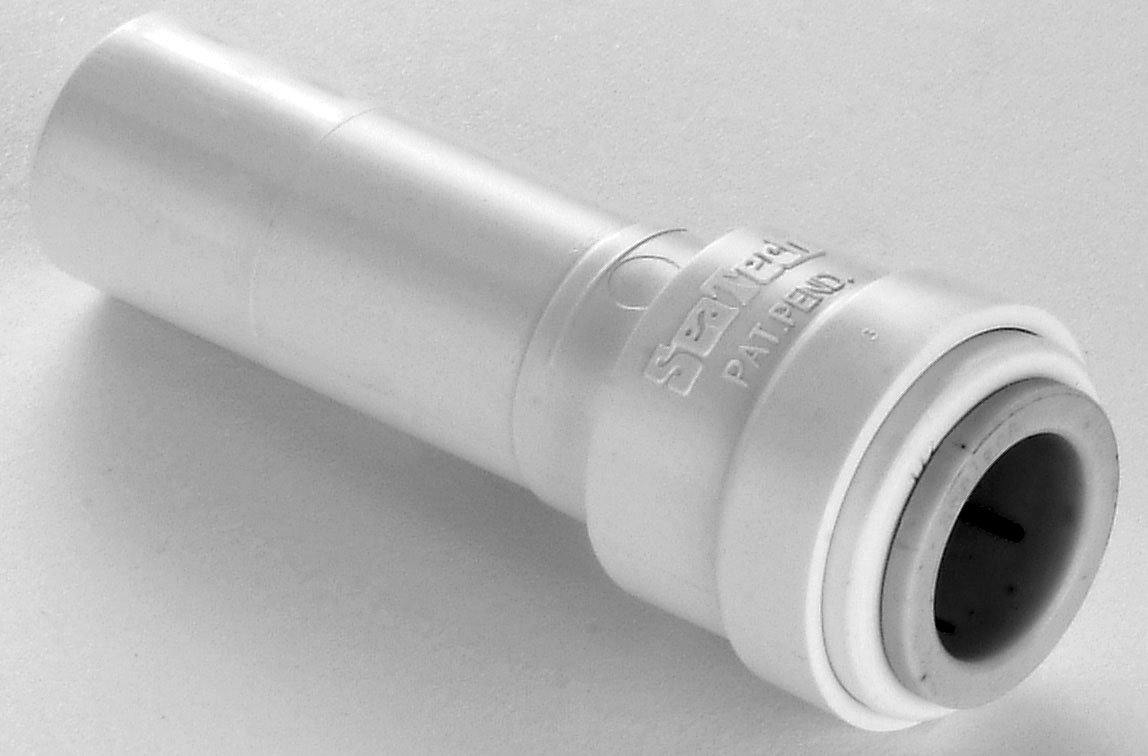

 (3514-1410)

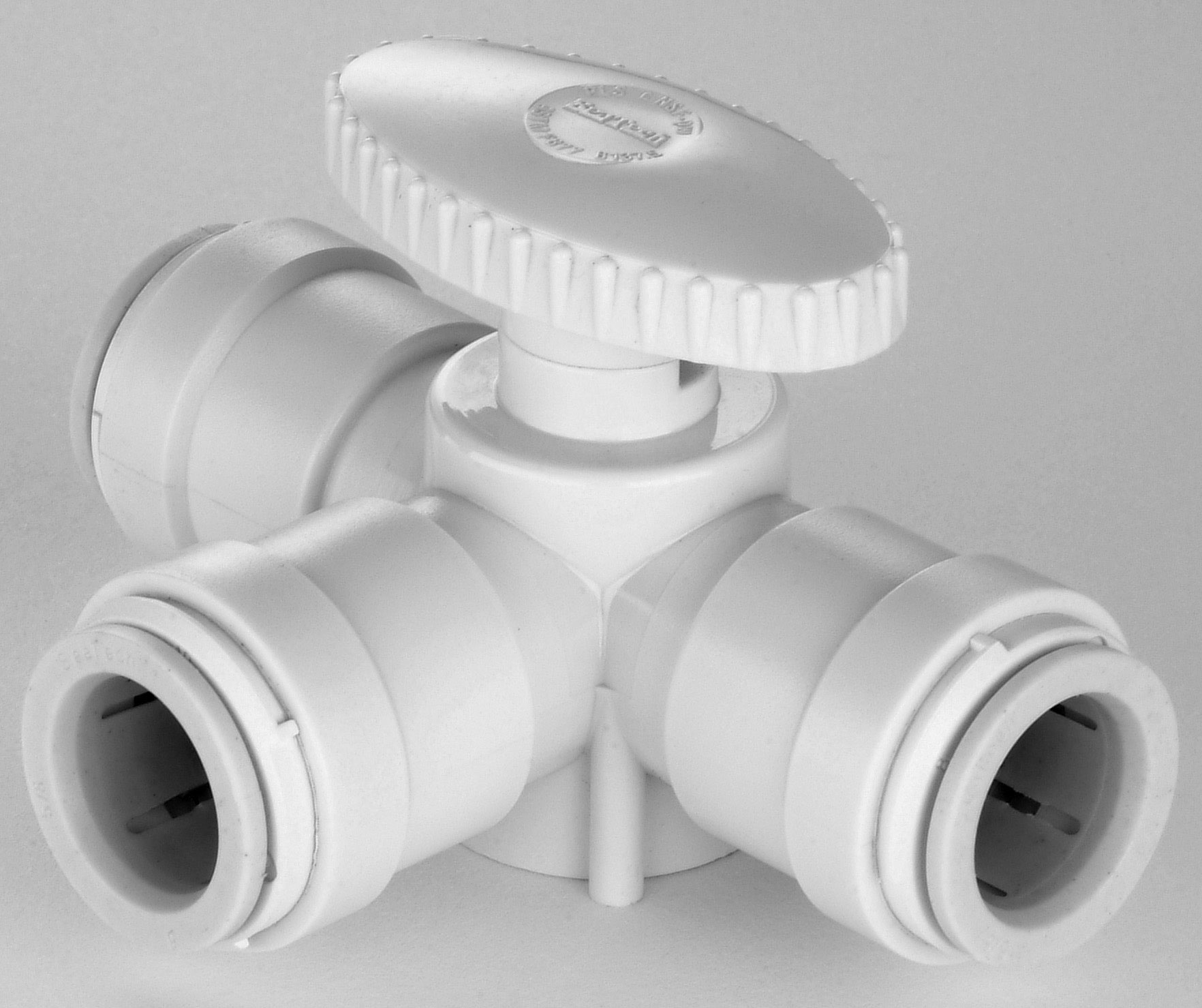

 (3538-10)

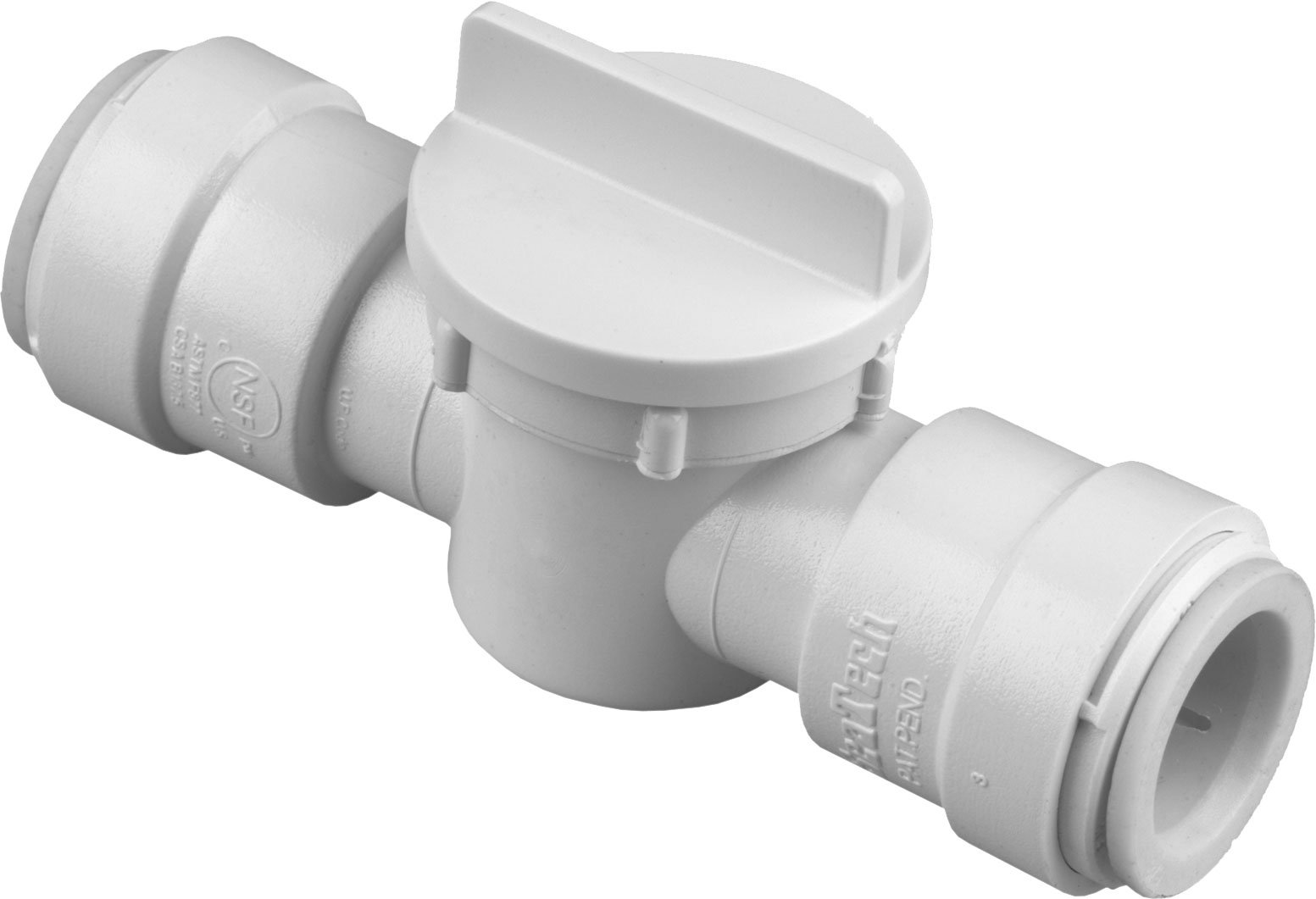

 (3539-10)

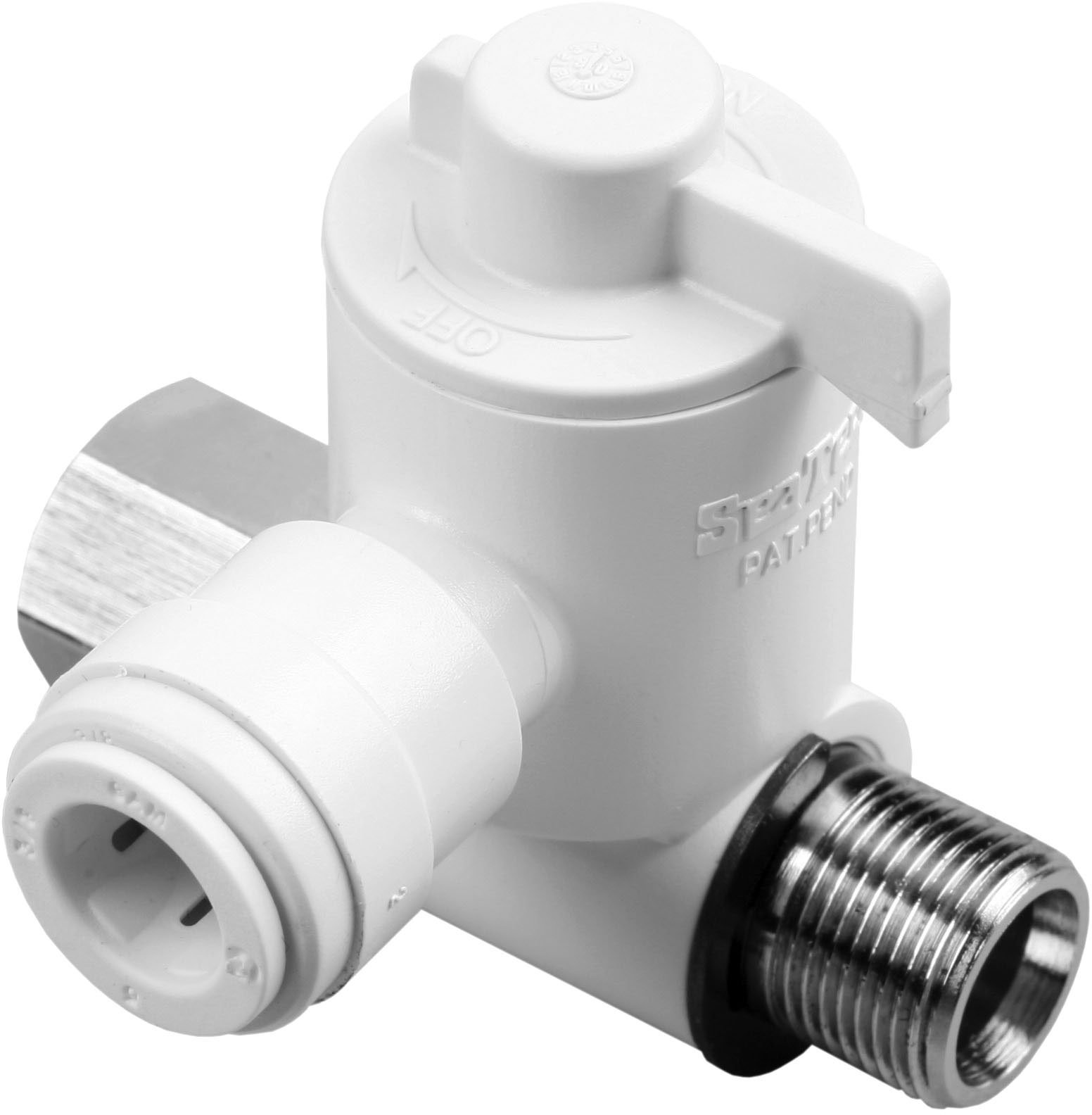

 (3561-0604)

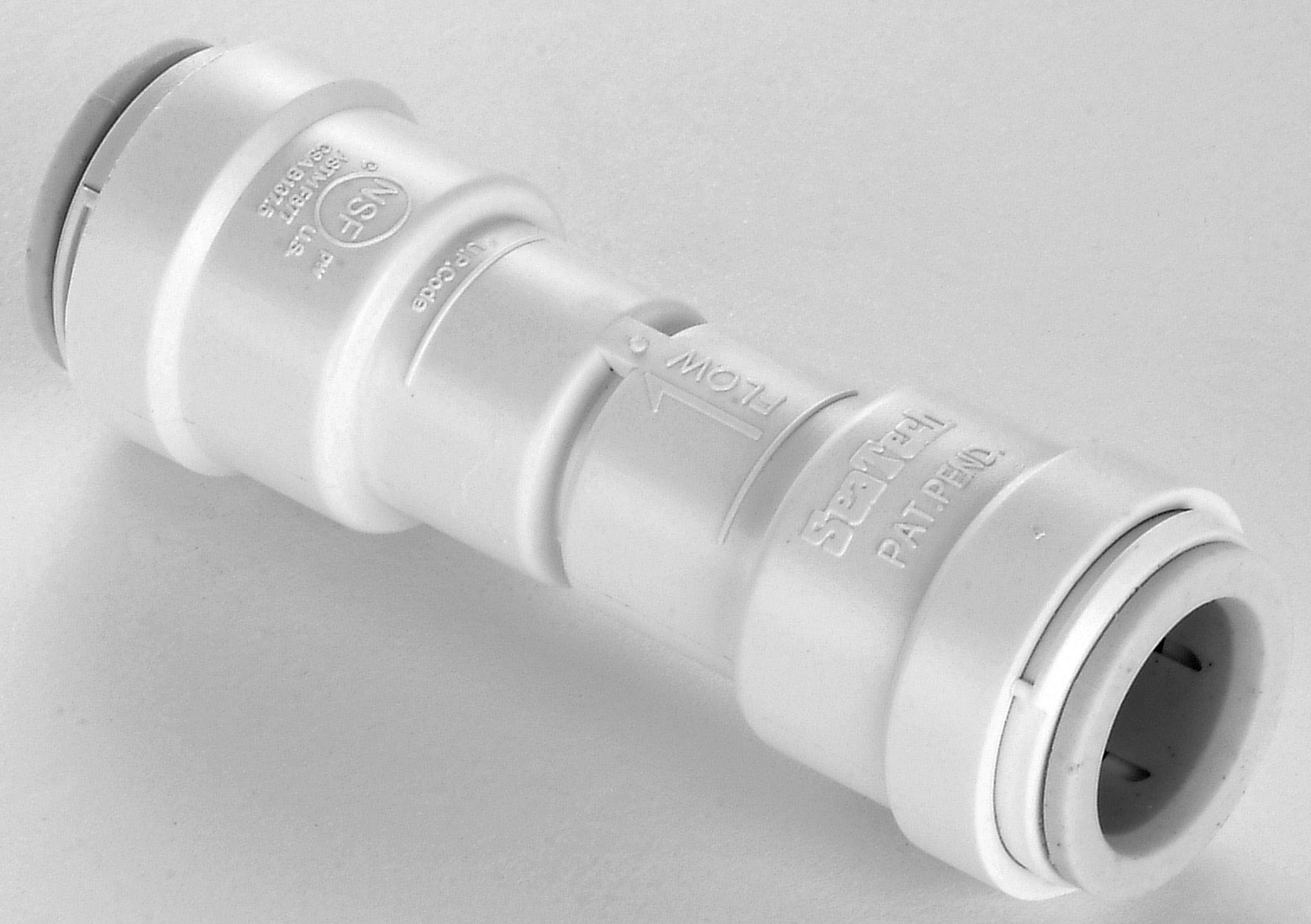

  (3540-10)

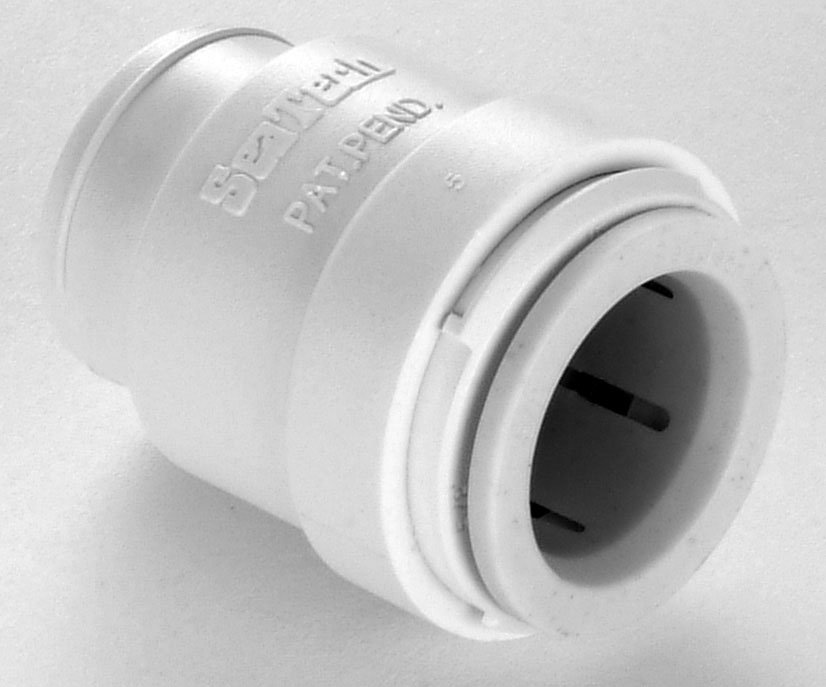

 (3545-10)

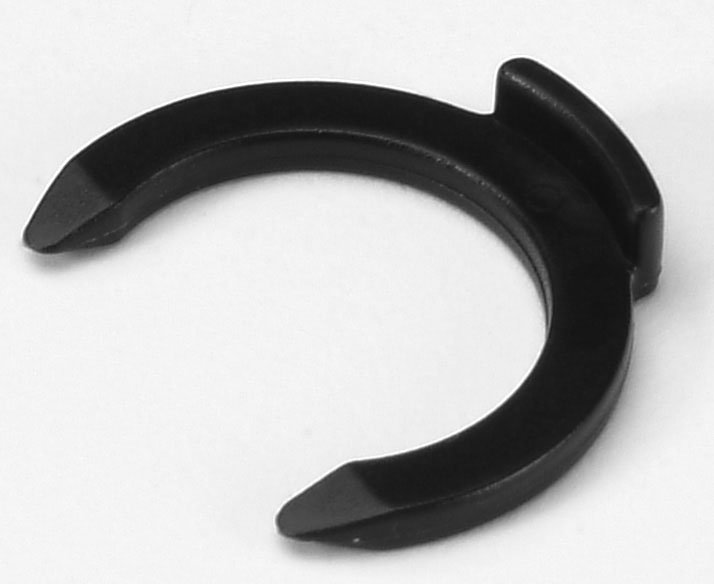

 (3547-10)

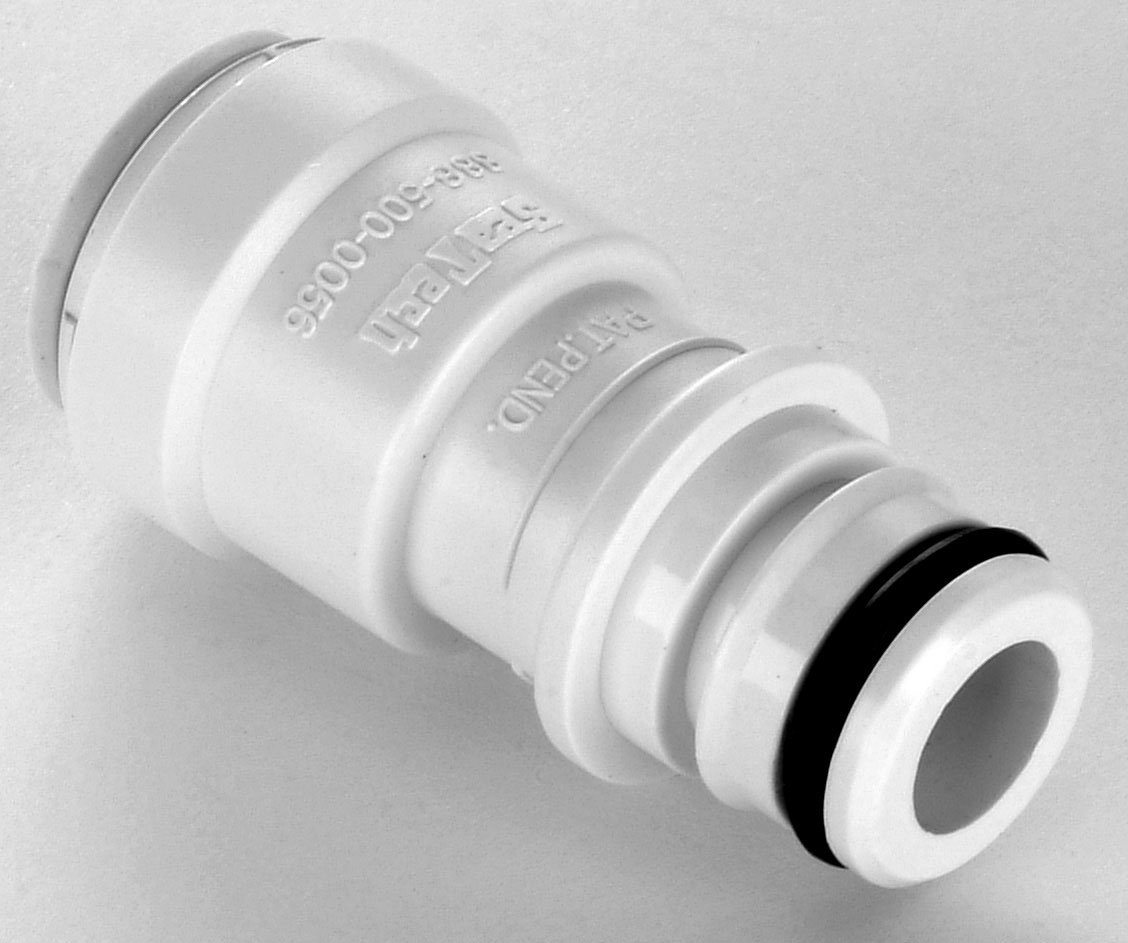

 (3575-10)

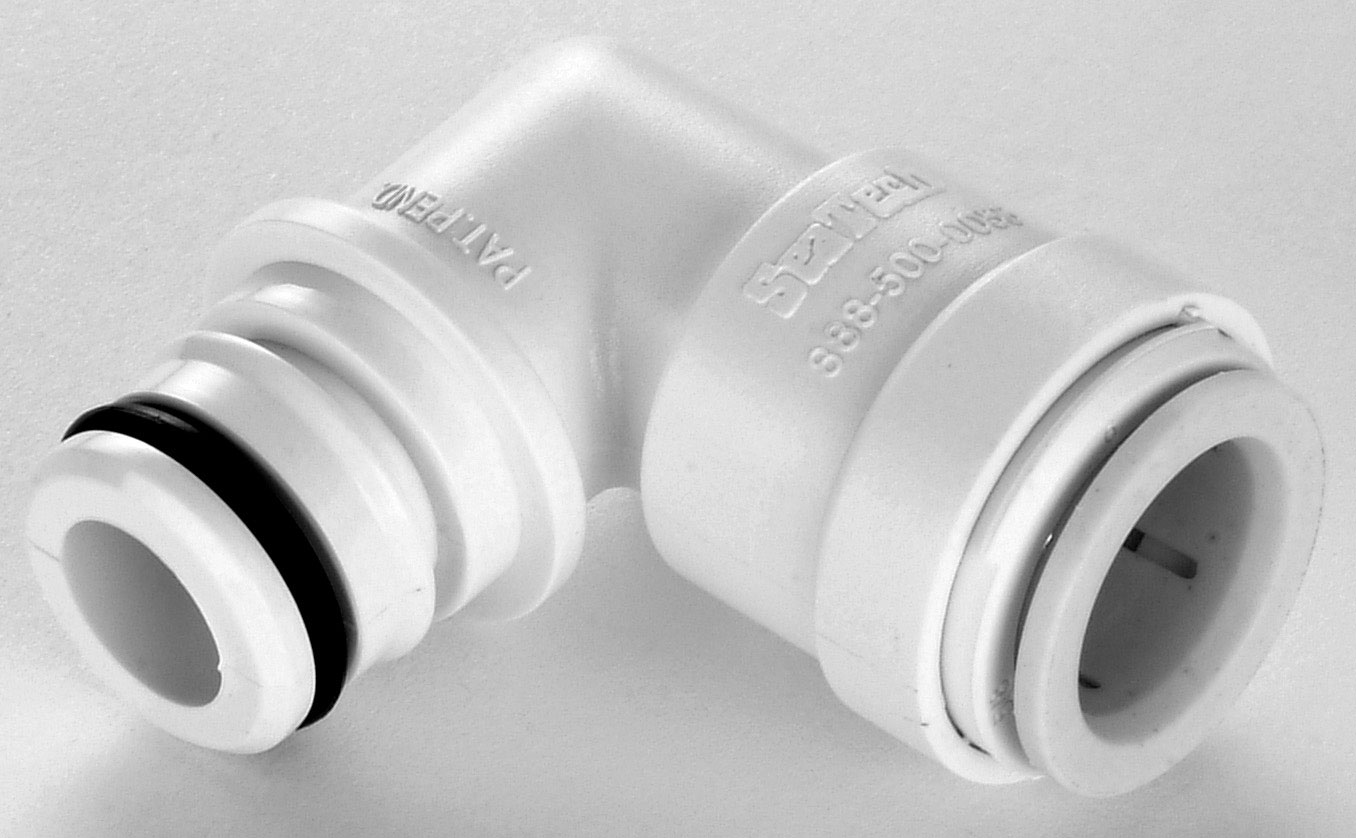

 (3576-10)

Male Connector

	Part #	Description	1+	80+	400+	800+
	PSEI012024E	1/2″ CTS X 1/2″ NPT – BLACK	$4.59	$3.98	$3.68	$3.37

	Part #	Description	1+	60+	300+	600+
	PSEI012026E	1/2″ CTS X 3/4″ NPT -BLACK	$5.19	$4.50	$4.16	$3.81

	Part #	Description	1+	50+	250+	500+
	PSEI012826E	3/4″ CTS X 3/4″ NPT – BLACK	$5.85	$5.07	$4.68	$4.29

	Part #	Description	1+	30+	150+	300+
	PSEI012828E	3/4″ CTS X 1″ NPT – BLACK	$7.11	$6.17	$5.69	$5.22
	PSEI013626E	1″ CTS X 3/4″ NPT – BLACK	$10.69	$9.27	$8.55	$7.84

	Part #	Description	1+	20+	100+	200+
	PSEI013628E	1″ CTS X 1″ NPT – BLACK	$11.82	$10.24	$9.45	$8.67

Female Connector

	Part #	Description	1+	150+	750+	1500+
	PSEI622836E	3/4″ CTS X 3/4″ NPS – BLACK	$11.89	$10.31	$9.51	$8.72

	Part #	Description	1+	50+	250+	500+
	PSEI622838E	3/4″ CTS X 1″ NPS – BLACK	$12.30	$10.66	$9.84	$9.02

	Part #	Description	1+	100+	500+	1000+
	PSEI623638E	1″ CTS X 1″ NPS – BLACK	$14.07	$12.19	$11.25	$10.32

	Part #	Description	1+	75+	375+	750+
	PSEI62363AE	1″ CTS X 1.25″ FPT – BLACK	$14.48	$12.55	$11.58	$10.62

Male Elbow

	Part #	Description	1+	60+	300+	600+
	PSEI482024E	1/2″ CTS X 1/2″ NPT – BLACK	$6.09	$5.28	$4.87	$4.47

Female Elbow

	Part #	Description	1+	150+	750+	1500+
	PSEI632836E	3/4″ CTS X 3/4″ NPS – BLACK	$12.00	$10.40	$9.60	$8.80

	Part #	Description	1+	30+	150+	300+
	PSEI632838E	3/4″ CTS X 1″ NPS – BLACK	$17.11	$14.83	$13.69	$12.55

	Part #	Description	1+	20+	100+	200+
	PSEI63283AE	3/4″ CTS X 1.25″ FPT – BLACK	$16.09	$13.95	$12.87	$11.80
	PSEI63363AE	1″ CTS X 1.25″ FPT – BLACK	$22.06	$19.12	$17.65	$16.18

Male Stem Adapter

	Part #	Description	1+	50+	250+	500+
	PSEI052826E	3/4″ CTS X 3/4″ NPT – BLACK	$4.50	$3.90	$3.60	$3.30

	Part #	Description	1+	20+	100+	200+
	PSEI053628E	1″ CTS X 1″ NPT – BLACK	$8.06	$6.99	$6.45	$5.91

Union Elbow

	Part #	Description	1+	40+	200+	400+
	PEI0320	1/2″ CTS	$4.94	$4.59	$4.23	$3.88

	Part #	Description	1+	20+	100+	200+
	PEI0328E	3/4″ CTS – BLACK	$6.90	$6.37	$6.16	$5.84

	Part #	Description	1+	10+	50+	100+
	PEI0336E	1″ CTS – BLACK	$13.38	$11.60	$10.71	$9.82

Plug in Stem Elbow

	Part #	Description	1+	60+	300+	600+
	PEI222020	1/2″ CTS	$3.10	$2.69	$2.48	$2.28

	Part #	Description	1+	25+	50+	100+
	PEI222828E	3/4″ CTS X 3/4″ S PLUG IN ELB; BLACK	$5.21	$4.52	$4.17	$3.82

	Part #	Description	1+	5+	50+	100+
	PEI223636E	1″ CTS X 1″ S PLUG IN ELB; BLACK	$9.56	$8.29	$7.65	$7.01

Reducer

	Part #	Description	1+	50+	250+	500+
	PEI062820	3/4″ STEM x 1/2″ CTS	$4.35	$3.77	$3.48	$3.19

	Part #	Description	1+	30+	150+	300+
	PEI063628	1″ STEM x 3/4″ CTS REDUCER	$5.76	$5.00	$4.61	$4.23

Union Tee

	Part #	Description	1+	25+	125+	250+
	PEI0220	1/2″ CTS	$3.63	$3.93	$3.63	$3.33

	Part #	Description	1+	10+	50+	100+
	PEI0228E	3/4″ CTS – BLACK	$7.86	$7.25	$7.01	$6.65

	Part #	Description	1+	5+	25+	50+
	PEI0236E	1″ CTS – BLACK	$13.61	$14.75	$13.61	$12.48

Reducing Tee

	Part #	Description	1+	15+	75+	150+
	PEI3028A	3/4″ X 3/4″ CTS X 1/2″CTS	$7.18	$6.23	$5.75	$5.27
	PEI3028D	3/4″ X 1/2″ CTS X 3/4″CTS	$7.18	$6.23	$5.75	$5.27

	Part #	Description	1+	20+	100+	200+
	PEI3028C	1/2″ X 1/2″ CTS X 3/4″CTS	$6.63	$5.74	$5.30	$4.86

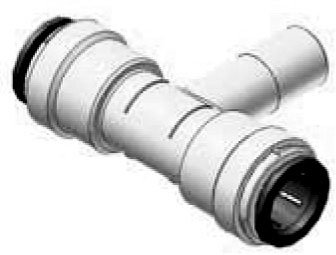

Stackable Tee

	Part #	Description	1+	30+	150+	300+
	PEI532020	1/2×1/2×1/2″ CTS	$5.67	$4.91	$4.53	$4.16

Coupler

	Part #	Description	1+	40+	200+	400+
	PEI0420	1/2″ CTS	$4.62	$4.00	$3.69	$3.39

	Part #	Description	1+	25+	125+	250+
	PEI0428E	3/4″ CTS – BLACK	$6.07	$5.26	$4.86	$4.45

	Part #	Description	1+	15+	75+	150+
	PEI0436E	1″ CTS – BLACK	$11.78	$10.21	$9.42	$8.64

Reducing Coupler

	Part #	Description	1+	15+	75+	150+
	PEI203628E	1″ X 3/4″ CTS – BLACK	$8.66	$7.51	$6.93	$6.35

End Cap

	Part #	Description	1+	100+	500+	1000+
	PSEI4628	3/4″ CTS END CAP	$3.99	$3.46	$3.19	$2.93

	Part #	Description	1+	30+	150+	300+
	PEI4636	1″ CTS END CAP	$5.88	$5.09	$4.70	$4.31

Female Swivel Connector

	Part #	Description	1+	50+	250+	500+
	PEISTC2034	1/2″ CTS X 1/2″ NPS	$5.27	$4.57	$4.22	$3.87

Female Swivel Elbow

	Part #	Description	1+	50+	250+	500+
	PEIBTC2034	1/2″ CTS X 1/2″ NPS	$5.27	$4.57	$4.22	$3.87

Shut Off Valve

	Part #	Description	1+	75+	375+	750+
	PSEISV28EP	3/4″ CTS	$17.85	$15.47	$14.28	$13.09

Superseal Pipe Insert

	Part #	Description	1+	100+	500+	1000+
	STS120	1/2″ CTS	$.36	$.30	$.27	$.24
	STS128	3/4″ CTS	$.65	$.54	$.49	$.43

Pipe Insert

	Part #	Description	1+	100+	500+	1000+
	TS120	1/2″ CTS	$.36	$.30	$.27	$.24
	TS128	3/4″ CTS	$.56	$.46	$.42	$.37

Nail Clip

	Part #	Description	1+	100+	500+	1000+
	NPC120	1/2″ CTS	$.12	$.10	$.09	$.08
	NPC128	3/4″ CTS	$.18	$.15	$.14	$.12

Pipe Clip

	Part #	Description	1+	200+	2000+	4000+
	USCLIP20	1/2″ CTS PIPE CLIP	$.23	$.26	$.25	$.23

	Part #	Description	1+	100+	1000+	2000+
	USCLIP28	3/4″ CTS PIPE CLIP	$.26	$.30	$.28	$.26

Pipe Cutters

	Part #	Description	1+	5+	10+	25+
	JG-TS	JG PIPE CUTTER	$39.75	$33.12	$29.81	$26.50
	JG HDC	JG HEAVY DUTY PIPE CUTTER	$63.15	$52.63	$47.37	$42.10
